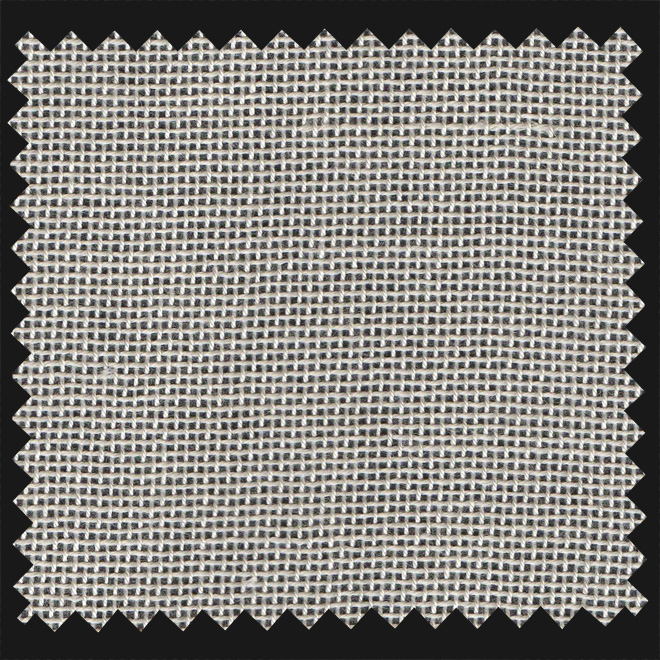

Meta Aramid Woven
Technical Textile For Industry Using



Fabric Property:

High temperature resistant

it is able to perform well for a long period of time under 260℃ And short period under 300℃

Inherently flame resistant

The limiting oxygen index(LOI) is over 28%. start to carbonize and decompose above 370℃

Resistant to chemicals

Has a high resistance toward weak acid, weak base and the majority of organic solvents;

Textile flexiable properties

High resistance to breakage and its high break elongation ratio guaranteed the end product with high intensity, good product longevity, and better tolerance to injection

Outstanding value

Seugrmax choice chinese meta aramid fiber to supply customers same as europe quality fabric at competitive price.


Fabric Weaving Type:

WOVEN TUBULAR BIAS CUT
TRICOT KNIT

Fabric Spec:
YARN COUNT: from Ne 10S/3~80S/1
DENSITY: from 18~40/inch
WEIGHT: from 100~250g/m²
THICKNESS: from 0.20~0.60mm

Article No Composition YarnCount DensityWidth Width (cm) Weight (g/㎡)
Warp Weft Warp Weft
NX-246 100% meta aramid 10s/2 10s/2 26 26 160 246
NX-155 100% meta aramid 20s/2 20s/2 32 32 160 154
NX-131 100% meta aramid 20s/1 20s/1 53 53 160 131
NX-135 100% meta aramid 30s/2 30s/2 40 40 160 135
NX-125 100% meta aramid 35s/2 35s/2 45 45 160 125
NX-116 100% meta aramid 40S/2 40S/2 47 47 160 116
MX-110 100% meta aramid 21S/1 21S/1 45 45 160 110
NX-120 100% meta aramid 30s/2 30s/2 38 38 160 120
NX-96 100% meta aramid 30s/1 30s/1 60 60 160 96
NX-72 100% meta aramid 30s/1 30s/1 45 45 160 72
NX-65 100% meta aramid 40s/1 40s/1 55 55 160 65
NX-82 100% meta aramid 40s/1 40s/1 70 70 160 82
NX-84 100% meta aramid 60s/2 60s/2 50 50 160 84
NX-70 100% meta aramid 60s/2 60s/2 43 43 160 70
NX-56 100% meta aramid 60s/1 60s/1 70 70 160 56
NX-44 100% meta aramid 60s/1 60s/1 55 55 160 44
NX-53 100% meta aramid 80s/1 80s/1 88 88 160 53
NX-43 100% meta aramid 80s/1 80s/1 70 70 160 43
NX-38 100% meta aramid 80s/1 80s/1 60 60 160 38
NX-37 100% meta aramid 80s/1 80s/1 60 60 160 38
NX-37 100% meta aramid 80s/1 80s/1 55 55 160 37
NX-33 100% meta aramid 100s/1 100s/1 70 70 160 33
NXC-246 meta aramid50%/Cotton50% 10s/2 10s/2 26 26 160 246
NXC-154 meta aramid50%/Cotton50% 20s/2 20s/2 32 32 160 154
NXC-132 meta aramid50%/Cotton50% 40s/2 40s/2 53 53 160 132
NXC-130 meta aramid50%/Cotton50% 20s/1 20s/1 53 53 160 130
NXC-127 meta aramid50%/Cotton50% 30s/2 30s/2 38 38 160 127
NXC-96 meta aramid50%/Cotton50% 30s/1 30s/1 60 60 160 96
NXC-65 meta aramid50%/Cotton50% 40s/1 40s/1 55 55 160 65
NXC-56 meta aramid50%/Cotton50% 60s/1 60s/1 70 70 160 56
