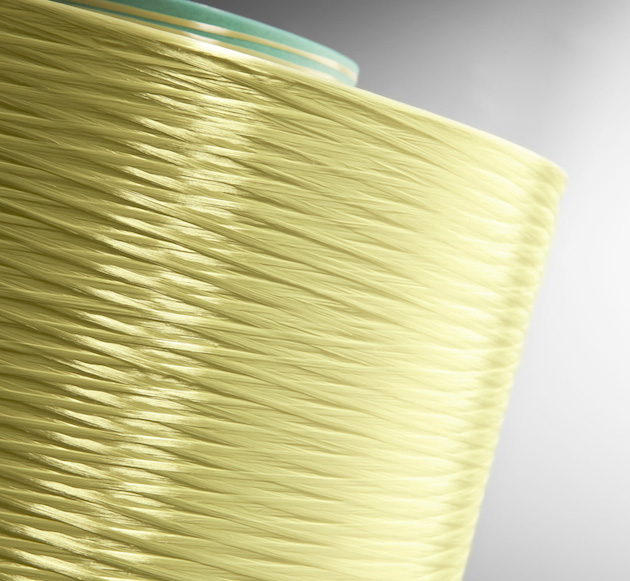

Segurmax ™ Para Aramid Sewing Thread

Characteristics

High Strength and High Modulus
Due to the high hydrogen bonds, the strength of Taparan®para aramid can reach up to above 28g/D.Its specific strength is 5-6 times that of steel wire , its specific modulus is 2-3 times that of steel wire or glass fiber , and its flexibility is 2 times that of steel wire while the weight is only 1/5 that of the steel wire.
Excellent Flame resistant
The limiting oxygen index(LOI) is over 29%. start to carbonise and decompose above 530℃
High temperature resistant
Can be used continuously in a very wide temperature range from -196℃ to 204℃.It has no decomposing or melting at 500℃.Its tenacity remains 75% after 100hours under 200℃.
Good Chemical Resistance
Para aramid is acid and alkali resistant, anti-aging with good adhesive force in rubber;
Good textile properties
High resistance to breakage and its high break elongation ratio guaranteed the end product with high intensity, good product longevity, and better tolerance to injection;
No Melt Drip properties
It is flame resistant with self-extinguish nature and non-melt drip characteristic.

Applications:

▲ Reinforcement materials
l Tyres cord fabric, tyres reinforcement
l Reinforcement material of rubber hoses and belts
l Optical cable reinforcement
l Repair and reinforcement of buildings and bridges
▲ Personal protection
l Bullet-proof apparels and helmets, heart-protect boards
l Cut-proof gloves and wrist supports
l High-temperature resistance gloves and apparels
▲ Composite materials
l Airplane,Yachts and vessels
l Tank & Automobile outer shells
l Fan Generator blades
l Resin coating material
▲ Friction sealing
l Brake facings and clutch disks
l Gearbox friction plates
l Gaskets

Meta Aramid Sewing Thread Property:

Article

M-Aramid 203

M-Aramid 303

M-Aramid 403

M-Aramid 353

Fiber

100% meta aramid 2.2detx

100% meta aramid 1.7dtex

100% meta aramid 1.7dtex

100% meta aramid 1.7dtex

Yarn Count (Ne)

20S/3

30S/3

40S/3

35S/3(Nm 60/3)

Yarn count (Tex)

90

60

45

50

Breaking Strength(CN)

2500

1600

1190

1330

Tenacity (Cn/tex)

28.2

27.1

26.8

27.0

Elongation

>23%

>22%

>21%

>21%

Length (Y/Cone)

2000Y

3000Y

4000Y

3500Y
