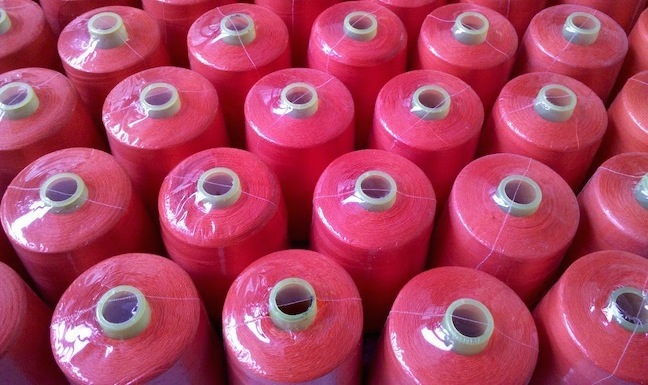

Segurmax ® Meta Aramid Sewing Thread

Characteristics

Excellent Flame resistant
The limiting oxygen index(LOI) is over 28%. start to carbonise and decompose above 370
High temperature resistant
it is able to perform well for a long period of time under acid base in 204℃ 70% strength of threads remains after being in 260 for 1000 hours
Resistant to chemicals
Has a high resistance toward weak acid, weak base and the majority of organic solvents;
Good textile properties
High resistance to breakage and its high break elongation ratio guaranteed the end product with high intensity, good product longevity, and better tolerance to injection;
No Melt Drip properties
It is flame resistant with self-extinguish nature and non-melt drip characteristic.

Spec :

Yarn count in Ne: Ne 40S/3, 30S/3, 20S/3, 36s/3. and other spec is available.
Yarn count in Nm: Nm 70/3, 60/3, 50/3, 40/3 and other spec is available.

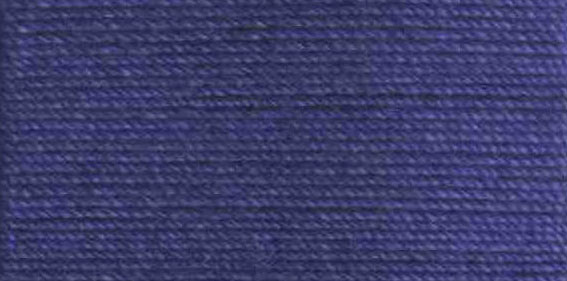

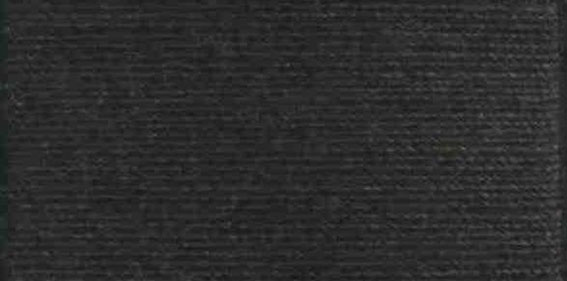

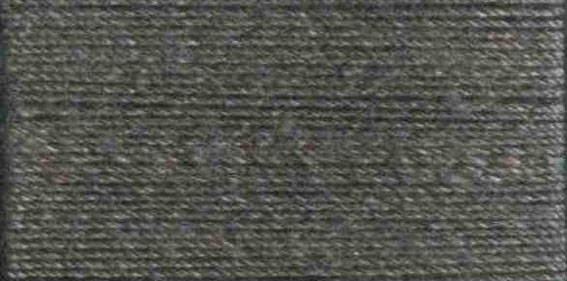

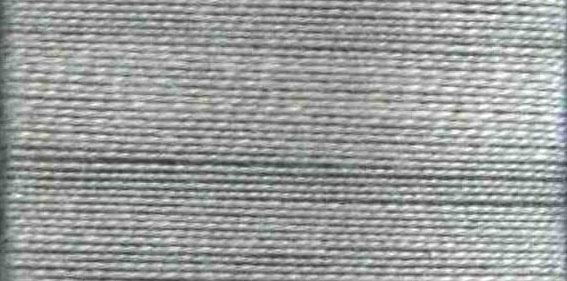

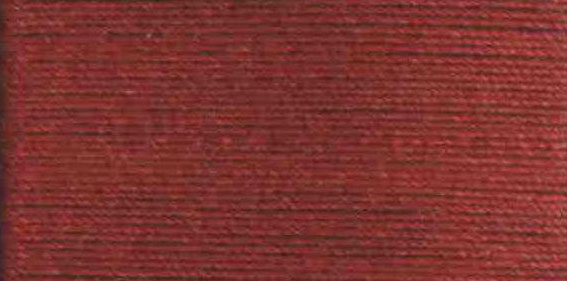

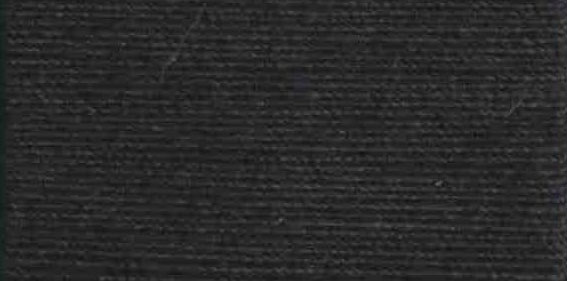

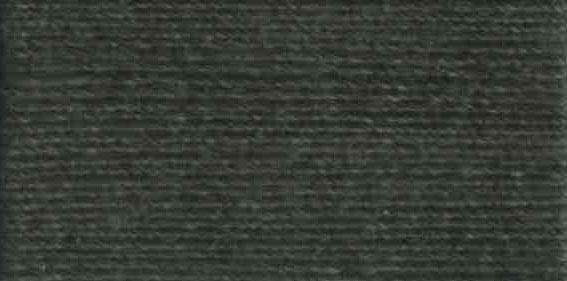

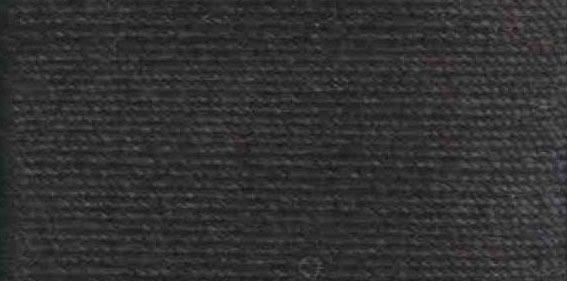

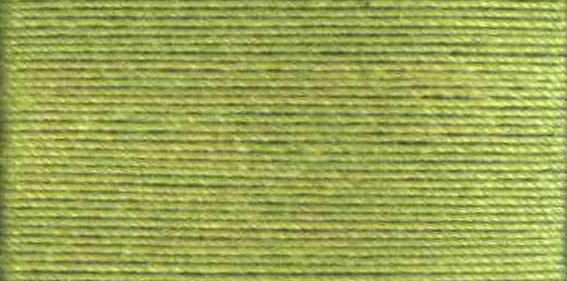

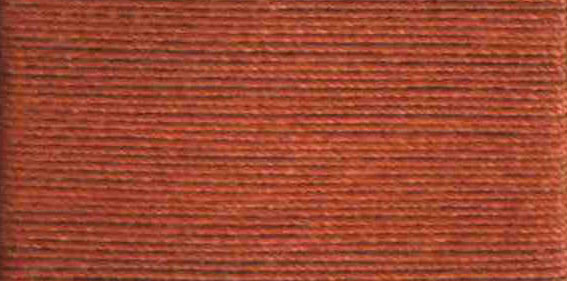

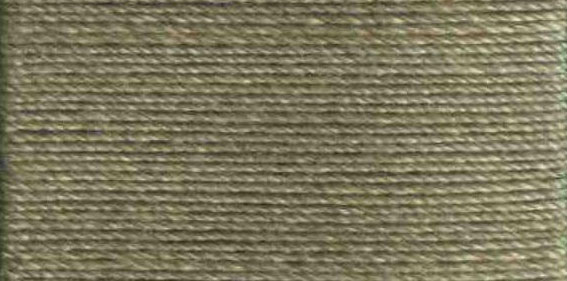

Yarn Color:Black, Navy blue, royal bule, green, yellow, orange, red, white, beige etc.





Meta Aramid Sewing Thread Property:

Article  M-Aramid 203 M-Aramid 303 M-Aramid 353 M-Aramid 403
Fiber 100% meta aramid 2.2detx 100% meta aramid 1.7dtex 100% meta aramid 1.7dtex 100% meta aramid 1.7dtex
Yarn count (Ne) 20S/3 30S/3 35S/3 40S/3
Yarn count (Nm) 35/3 50/3 60/3 70/3
Yarn count (Tex) 90 60 50 45
Breaking Strength(CN) 2500 1580 1330 1220
Tenacity (Cn/tex) 28.2 28.2 27.0 27.8
Elongation >23% >22% >21% >21%
Length (m/kg) 11500 17000 20000 22500

Applications:

▲ Fire fighting Gear
▲ Military, Police, Racing Suit
▲ Flame Retardant PPE work wear, Arc flash Suit
▲ High temperature filter bag
